Orange Peel Overshot Draft

Hello, friends. I have really enjoyed watching the “orange peel” overshot design take shape on the loom this week. A four shaft design, this pattern entails a lengthy pattern repeat and threading sequence. However, I’ve found that taking the pattern in increments and limiting distractions at the loom (true confession: trying to weave this pattern while listening to Philip Glass at the same time was a pretty feeble idea) will allow you to generate a very special piece for your home or for a friend. Patience is key. (But if you’re a weaver, you already know that).

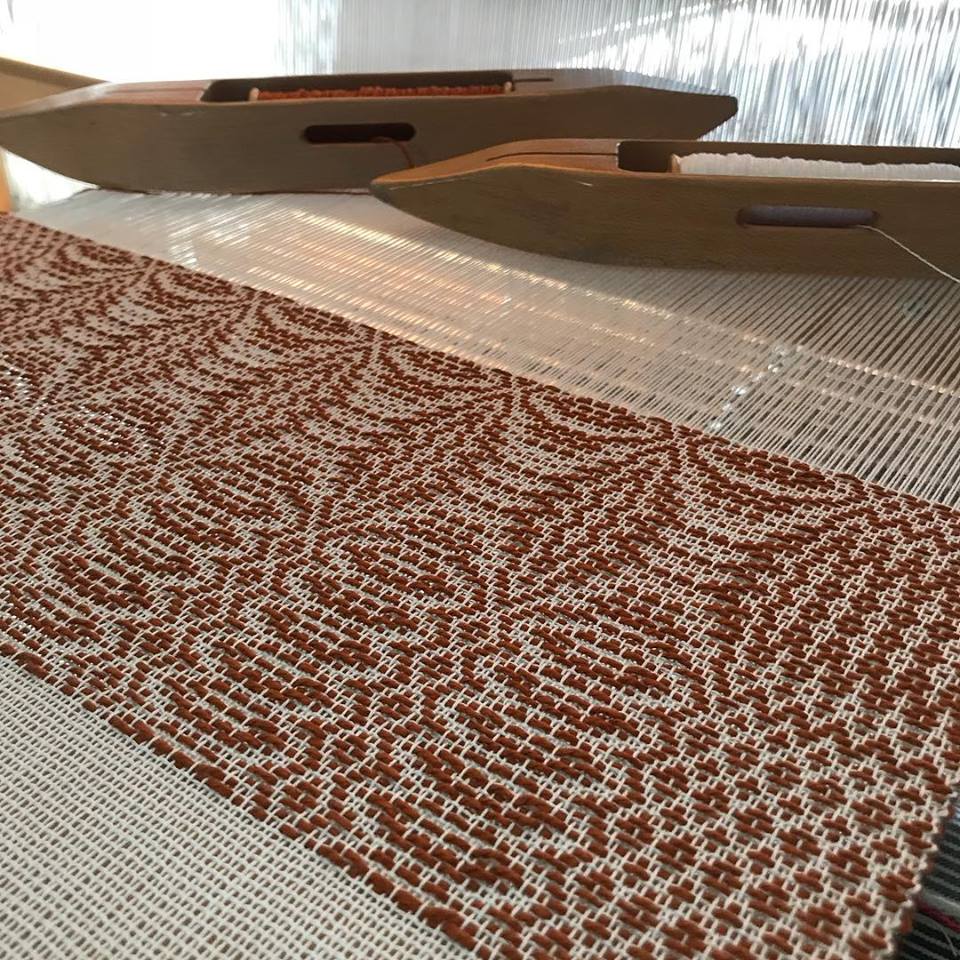

Rust orange peel
(Burnt) orange orange peels

A few disclaimers: a basic understanding of how overshot works is required. For example, I did not include all of the tabby picks that are required throughout the cloth. You’ll need to remember to tie up your loom for tabby as well, as only the overshot tie up is included in my draft.

Update 2021: this post has been accessed by readers over 1,000 times since I made it available. If you have benefitted from this weaving draft and would like to make a small contribution to support my efforts as an independent artisan, it would be most appreciated. There is a Paypal Tip Jar at the end of the instructions here.  I also invite you to peruse my print-at-home weaving patterns available for purchase here via Paypal or via instant download in my Etsy shop. Thank you!

Basic set up: I used 10/2 mercerized cotton sett at 20 ends per inch (threads are doubled in a 10 dent reed).  The width in the reed is 14.5″. I used floating selvedges on each side of the warp. I used the same 10/2 cotton for the ground/tabby weft and 3/2 mercerized cotton for the pattern weft.  You can select different yarns but your sett may be different. I weave a 2″ tabby border for hems with the 10/2 cotton before proceeding with the pattern, but you can plan to finish your cloth in a manner that suits you (i.e. hemstitching).

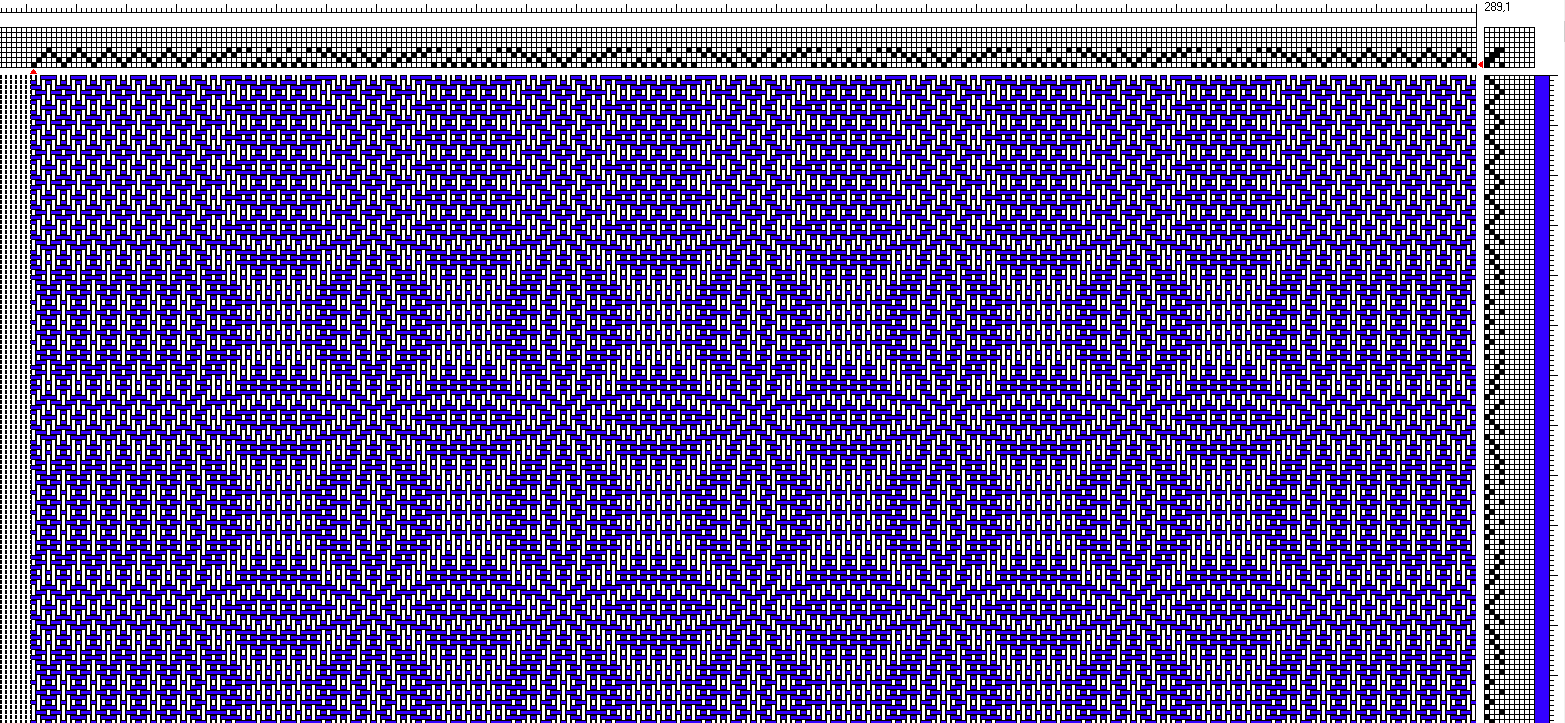

Here is the Google Drive link for the image of the draft. You should be able to see the threading, tie-up, and at least one full repeat of the border and the orange peel motif:

https://drive.google.com/file/d/1Kg2i-RcgbSRSZWLcAWvifqU_VLtRzt19/view?usp=sharing

The page will look something like this but you’ll be able (fingers crossed, I’m no computer whiz) to download the Google Drive file, which is a .png file:

Orange Peel Draft Dec 1 2017.png

Repeat the orange peel motif to your heart’s content. The border is a simple point twill design; you can lengthen, shorten, or omit to suit your preferences.

Tip jar

Thank you for supporting my work as an independent artisan and textile designer.

$3.00
